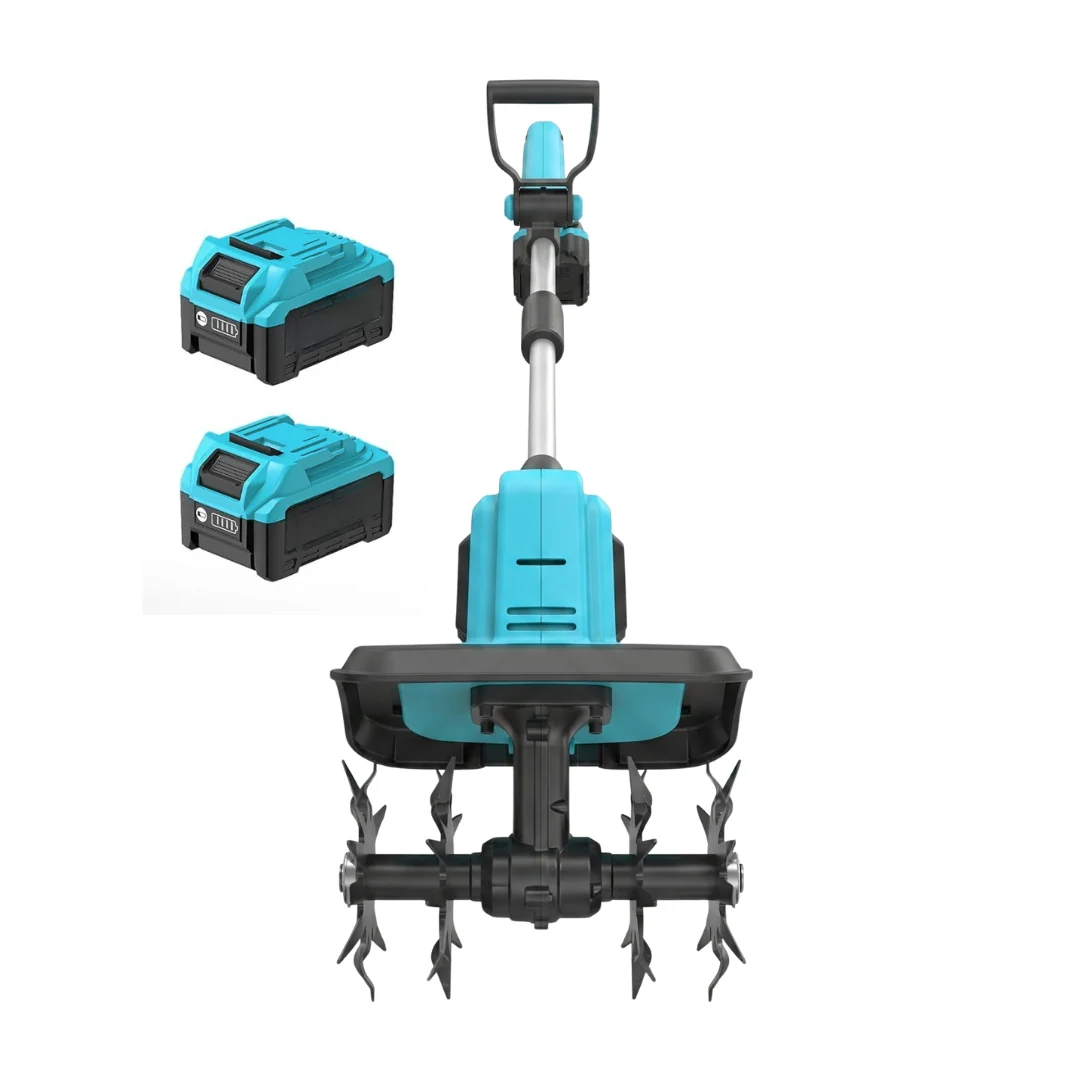

Garden Tiller Cultivator with Steel Tines - 20V Battery Operated Tool

Soil Processing System Overview

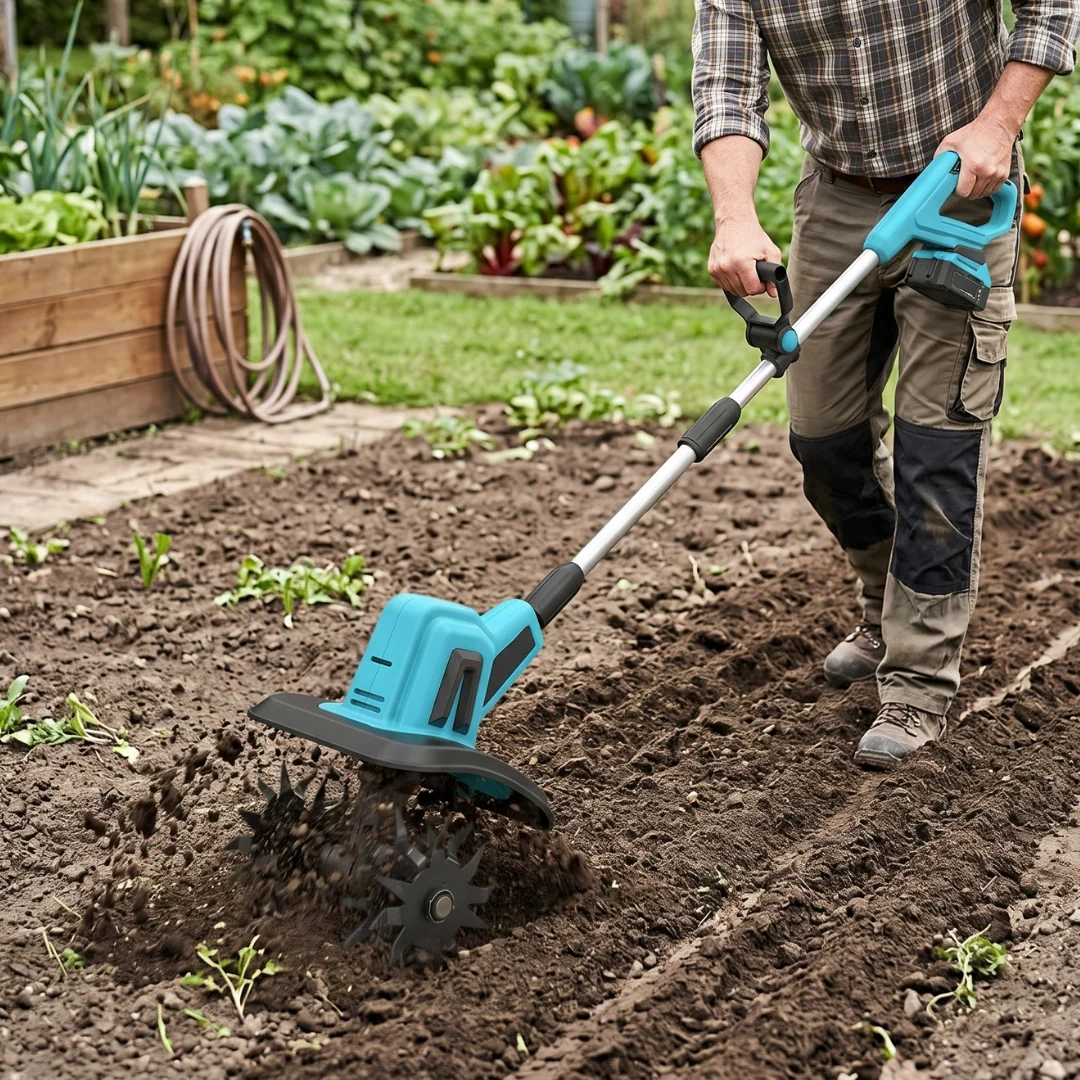

This cultivator operates on a powerful 20V battery system, utilizing a rotary tine assembly driven by a vertical shaft. With four steel tines working in unison, it effectively engages the soil as it rotates. Each pass covers a width of 9 inches, while it can penetrate the ground up to 6 inches, depending on soil conditions. The sturdy frame is constructed from durable alloy steel, ensuring robust support during use.

Drive System Behavior

The drive system functions at a swift speed of 360RPM, powered by lithium battery modules. This set includes three 4.0Ah batteries, with one already installed for immediate use. The design allows for quick battery swapping, enabling seamless operation without the need for a wired connection. To activate the tiller, users must engage both the interlock switch and the main trigger simultaneously. For ease of maintenance, the gear housing can be easily removed.

Control Interface Layout

The handle assembly features an adjustable mechanism for optimal alignment while working. Controls are conveniently located on the upper grip for easy access. This unit is designed to operate without any power cord, enhancing mobility. The tine assembly can be detached from the lower gear section for thorough cleaning, and the rear frame support allows for upright storage.

Product Benefits:

• Soil Preparation Coverage: Supports coverage of a 9 inches working path per pass for soil processing tasks.
• Depth Engagement Control: Reaches up to 6 inches depending on ground resistance and surface type.

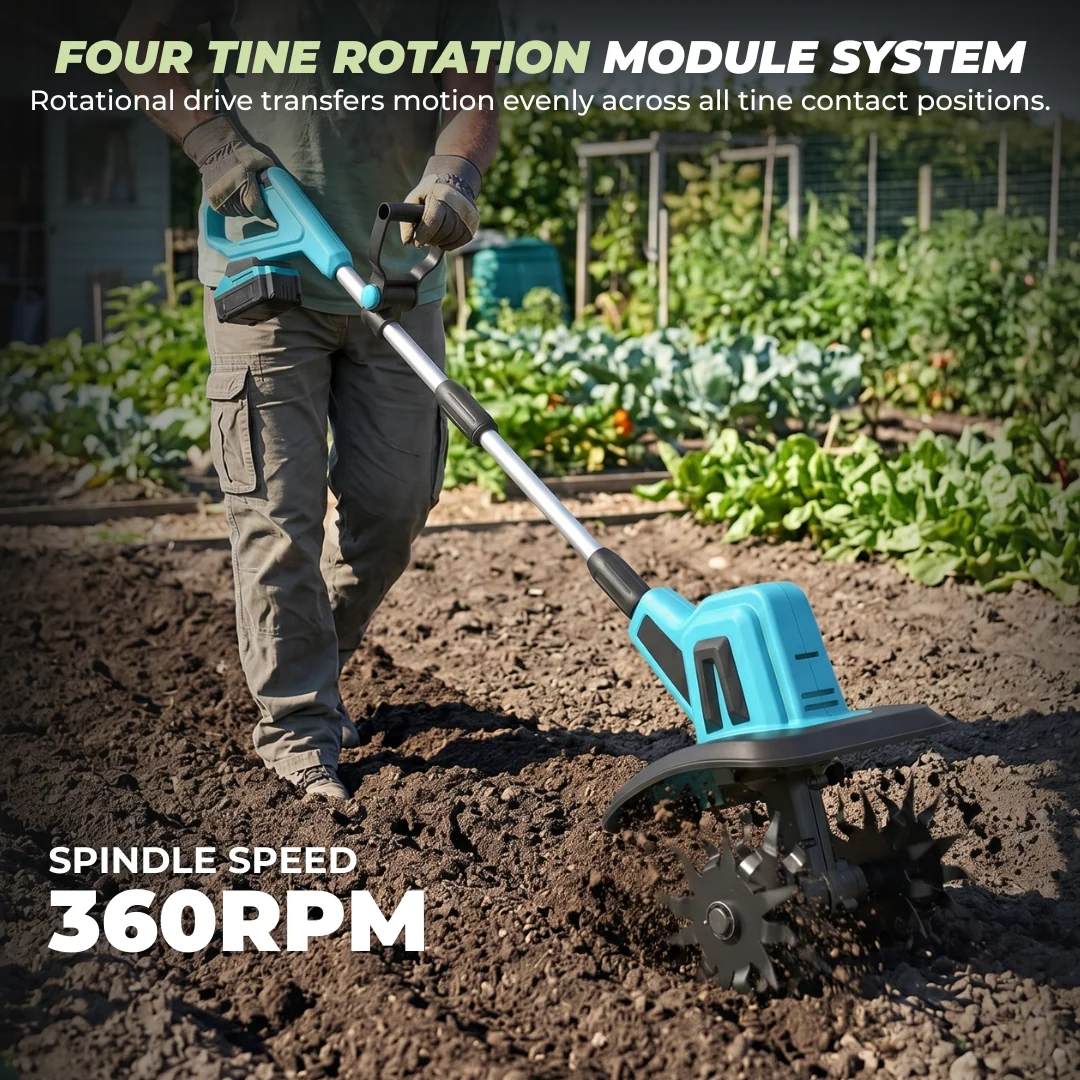

• Rotational Tine Output: Operates at 360RPM for consistent tine movement during use cycles.
• Interchangeable Power Modules: Uses 20V 4.0Ah battery units with swap capability to reduce interruption between tasks.

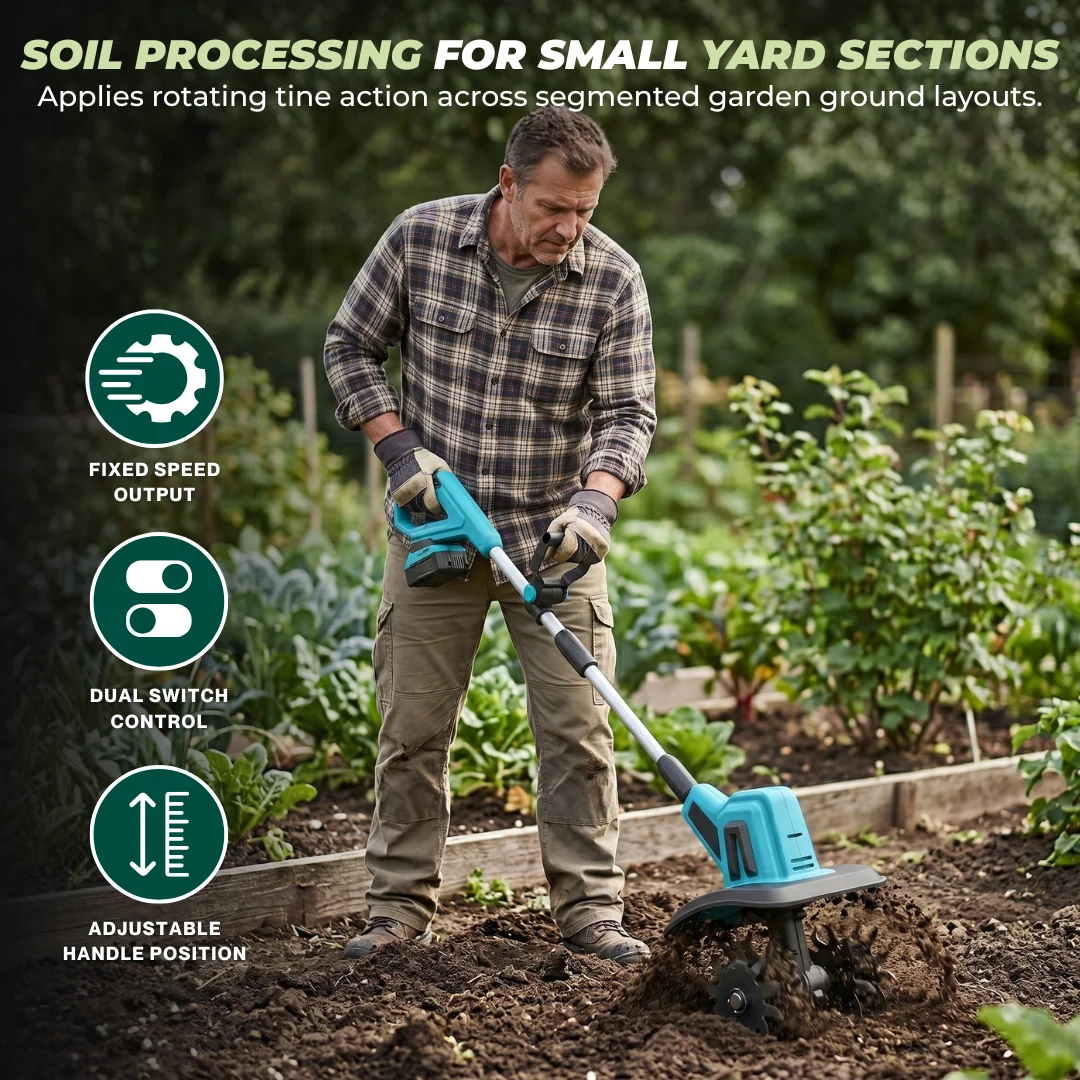

• Activation Control System: Requires simultaneous interlock switch and trigger input before operation begins.

Specifications:

• Power Source: 20V battery system
• Working Width: 9 inches
• Working Depth: Up to 6 inches
• Rotation Speed: 360RPM
• Product Weight: 14.42 lb

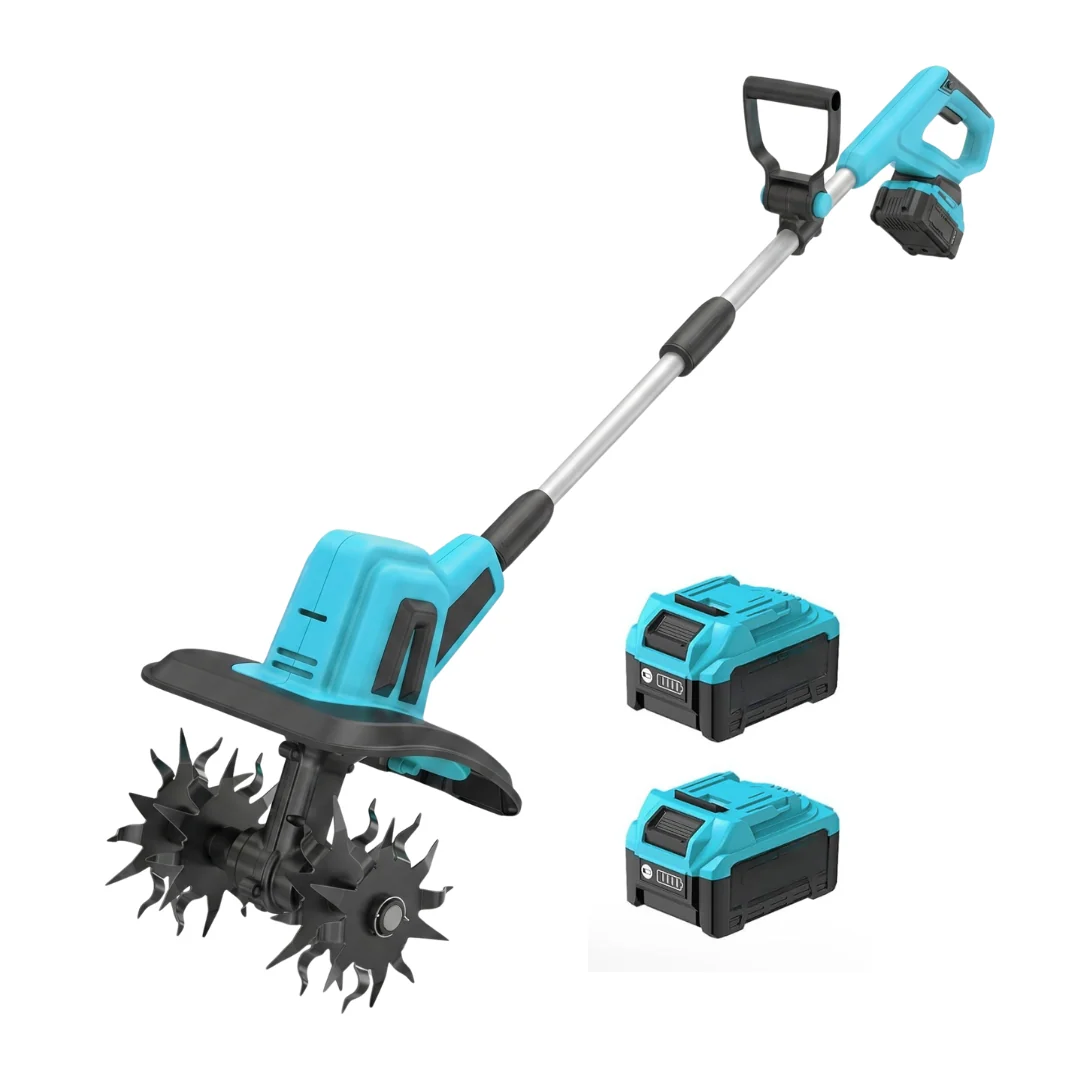

• Battery Configuration: Three 4.0Ah battery units included, one pre-installed
